SIMPLE AND SECURE INSTALLATION

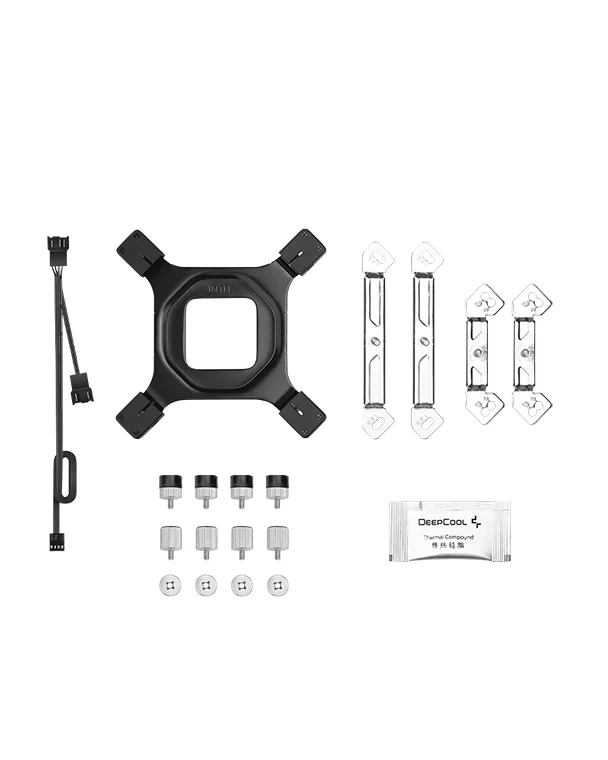

The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.
Technical Spec
| Product Dimensions | 129×136×161 mm(L×W×H) |
| Heatsink Dimensions | 127×110×157 mm(L×W×H) |
| Net Weight | 1370 g |
| Heatpipe | Ø6 mm×6 pcs |
| Fan Dimensions | 120×120×25 mm(L×W×H) |
| Fan Speed | 300~1950 RPM±10% |
| Fan Airflow | 67.88 CFM |
| Fan Air Pressure | 2.04 mmAq |
| Fan Noise | ≤29.4 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.14 A |
| Fan Power Consumption | 1.68 W |
| LED Type | LED |
| LED Connector | 3-pin(+5V-D-G) and 9-pin USB 2.0 |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 0.95 W |
| EAN | 6933412728443 |
| P/N | R-AG620-BKNDMN-G-2 |
